- 首页 / 产品介绍 / 散热风扇事业部 / AC 交流风扇 / 80x80x38 mm / 80x80x38mm
散热风扇事业部
80x80x38 mm
询价清单 (0)
請拖曳表格

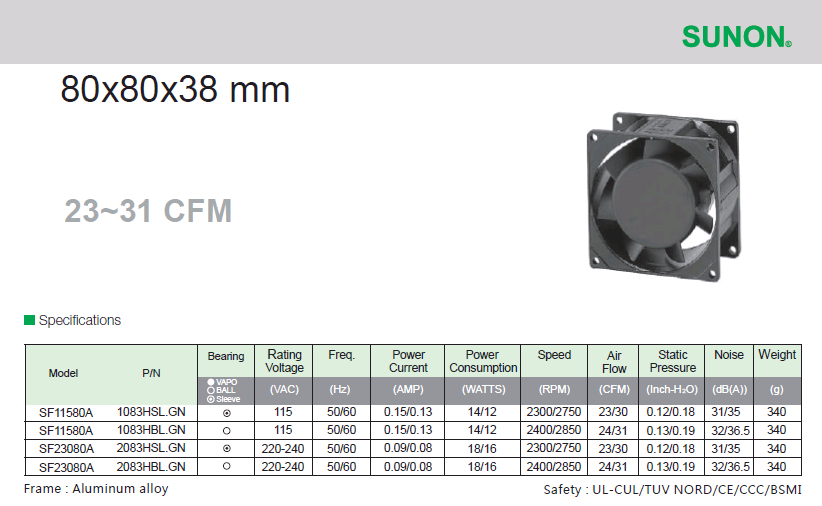

| Model | SF11580A 1083HBL.GN |
|---|---|
| Length (mm) | 80 |
| Width (mm) | 80 |
| Thickness (mm) | 38 |
| Size L x H x W (mm) | 80X80X38 |
| Voltage | 115 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.15/0.13 |
| Power Consumption (Watts) | 14/12 |
| RPM (Speed) | 2400/2850 |
| CFM (Air Flow) | 24/31 |
| Static Pressure (Inch_H2O) | 0.13/0.19 |
| Noise (DBA) | 32/36.5 |
| Weight (g) | 340 |
| Model | SF11580A 1083HSL.GN |
|---|---|
| Length (mm) | 80 |
| Width (mm) | 80 |
| Thickness (mm) | 38 |
| Size L x H x W (mm) | 80X80X38 |
| Voltage | 115 |
| Bearing Type | SLEEVE |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.15/0.13 |
| Power Consumption (Watts) | 14/12 |
| RPM (Speed) | 2300/2750 |
| CFM (Air Flow) | 23/30 |
| Static Pressure (Inch_H2O) | 0.12/0.18 |
| Noise (DBA) | 31/35 |
| Weight (g) | 340 |
| Model | SF23080A 2083HBL.GN |
|---|---|
| Length (mm) | 80 |
| Width (mm) | 80 |
| Thickness (mm) | 38 |
| Size L x H x W (mm) | 80X80X38 |
| Voltage | 220-240 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.09/0.08 |
| Power Consumption (Watts) | 18/16 |
| RPM (Speed) | 2400/2850 |
| CFM (Air Flow) | 24/31 |
| Static Pressure (Inch_H2O) | 0.13/0.19 |
| Noise (DBA) | 32/36.5 |
| Weight (g) | 340 |
| Model | SF23080A 2083HSL.GN |
|---|---|
| Length (mm) | 80 |
| Width (mm) | 80 |
| Thickness (mm) | 38 |
| Size L x H x W (mm) | 80X80X38 |
| Voltage | 220-240 |
| Bearing Type | SLEEVE |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.09/0.08 |
| Power Consumption (Watts) | 18/16 |
| RPM (Speed) | 2300/2750 |
| CFM (Air Flow) | 23/30 |
| Static Pressure (Inch_H2O) | 0.12/18 |
| Noise (DBA) | 31/35 |
| Weight (g) | 340 |
