散热风扇事业部

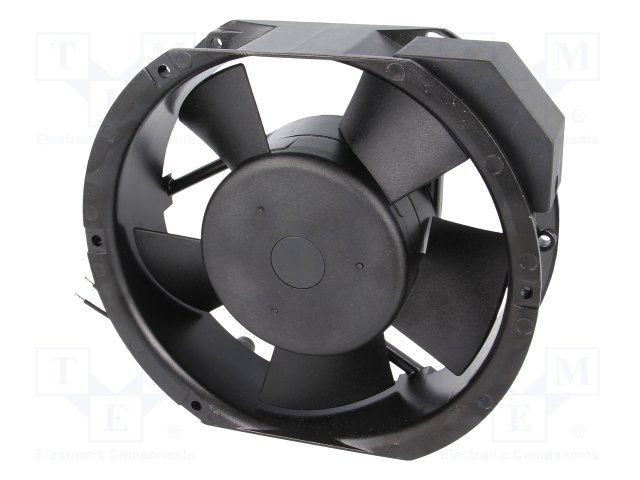

171x151x51 mm (Alveolate Motor)
询价清单 (0)
請拖曳表格
| Model | A1175-HBL.TC.GN |
|---|---|
| Length (mm) | 171 |
| Width (mm) | 151 |
| Thickness (mm) | 51 |
| Size L x H x W (mm) | 171X151X51 |
| Voltage | 115 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.22/0.23 |
| Power Consumption (Watts) | 25/27 |
| RPM (Speed) | 2800/3200 |
| CFM (Air Flow) | 203/239 |
| Static Pressure (Inch_H2O) | 0.62/0.69 |
| Noise (DBA) | 51/58 |
| Weight (g) | 908 |
| Model | A1175-HBT.TC.GN |
|---|---|
| Length (mm) | 171 |
| Width (mm) | 151 |
| Thickness (mm) | 51 |
| Size L x H x W (mm) | 171X151X51 |
| Voltage | 115 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.22/0.23 |
| Power Consumption (Watts) | 25/27 |
| RPM (Speed) | 2800/3200 |
| CFM (Air Flow) | 203/239 |
| Static Pressure (Inch_H2O) | 0.62/0.69 |
| Noise (DBA) | 51/58 |
| Weight (g) | 908 |
| Model | A2175-HBL TC.GN |
|---|---|
| Length (mm) | 171 |
| Width (mm) | 151 |
| Thickness (mm) | 51 |
| Size L x H x W (mm) | 171X151X51 |
| Voltage | 220-240 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.11/0.11 |
| Power Consumption (Watts) | 25/26 |
| RPM (Speed) | 2800/3200 |
| CFM (Air Flow) | 203/239 |
| Static Pressure (Inch_H2O) | 0.62/0.69 |
| Noise (DBA) | 51/58 |
| Weight (g) | 908 |
| Model | A2175-HBT TC.GN |
|---|---|
| Length (mm) | 171 |
| Width (mm) | 151 |
| Thickness (mm) | 51 |
| Size L x H x W (mm) | 171X151X51 |
| Voltage | 220-240 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.11/0.11 |
| Power Consumption (Watts) | 25/26 |
| RPM (Speed) | 2800/3200 |
| CFM (Air Flow) | 203/239 |
| Static Pressure (Inch_H2O) | 0.62/0.69 |
| Noise (DBA) | 51/58 |
| Weight (g) | 908 |
