散热风扇事业部
176x176x89 mm (Alveolate Motor)
询价清单 (0)
請拖曳表格

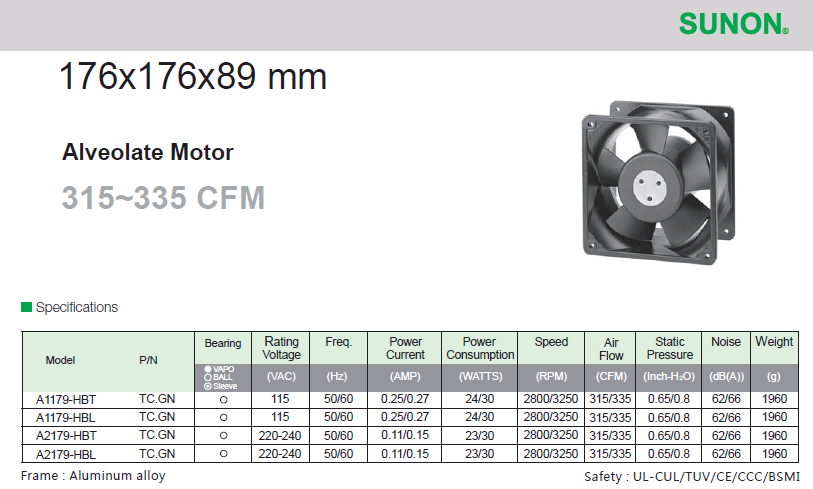

| Model | A1179-HBT TC.GN |
|---|---|
| Length (mm) | 176 |
| Width (mm) | 176 |
| Thickness (mm) | 89 |
| Size L x H x W (mm) | 176X176X89 |
| Voltage | 115 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.25/0.27 |
| Power Consumption (Watts) | 24/30 |
| RPM (Speed) | 2800/3250 |
| CFM (Air Flow) | 315/335 |
| Static Pressure (Inch_H2O) | 0.65/0.80 |
| Noise (DBA) | 62/66 |
| Weight (g) | 1960 |
| Model | A1179-HBL TC.GN |
|---|---|
| Length (mm) | 176 |
| Width (mm) | 176 |
| Thickness (mm) | 89 |
| Size L x H x W (mm) | 176X176X89 |
| Voltage | 115 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.25/0.27 |
| Power Consumption (Watts) | 24/30 |
| RPM (Speed) | 2800/3250 |
| CFM (Air Flow) | 315/335 |
| Static Pressure (Inch_H2O) | 0.65/0.80 |
| Noise (DBA) | 62/66 |
| Weight (g) | 1960 |
| Model | A2179-HBT TC.GN |
|---|---|
| Length (mm) | 176 |
| Width (mm) | 176 |
| Thickness (mm) | 89 |
| Size L x H x W (mm) | 176X176X89 |
| Voltage | 220-240 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.11/0.15 |
| Power Consumption (Watts) | 23/30 |
| RPM (Speed) | 2800/3250 |
| CFM (Air Flow) | 315/335 |
| Static Pressure (Inch_H2O) | 0.65/0.80 |
| Noise (DBA) | 62/66 |
| Weight (g) | 1960 |
| Model | A2179-HBL TC.GN |
|---|---|
| Length (mm) | 176 |
| Width (mm) | 176 |
| Thickness (mm) | 89 |
| Size L x H x W (mm) | 176X176X89 |
| Voltage | 220-240 |
| Bearing Type | 2BALL |
| Frequency (Hz) | 50/60 |
| Power Current (mA - VDC, Amp - VAC) | 0.11/0.15 |
| Power Consumption (Watts) | 23/30 |
| RPM (Speed) | 2800/3250 |
| CFM (Air Flow) | 315/335 |
| Static Pressure (Inch_H2O) | 0.65/0.80 |
| Noise (DBA) | 62/66 |
| Weight (g) | 1960 |
