Ø254x89 mm (Alveolate Motor)

询价清单 (0)

Ø254X89mm(AlveolateMotor)

Ø254X89 mm(Alveolate Motor)

产品型号
建準SUNON
产品介绍
A1259-XBL(T) TC.N.GN

A1259-HBL(T) TC.N.GN

A1259-MBL(T) TC.N.GN

A2259-HBL(T) TC.N.GN

A2259-MBL(T) TC.N.GN
规格说明
425~870 CFM

Alveolate Motor

10吋

其他说明1
档案下载

請拖曳表格

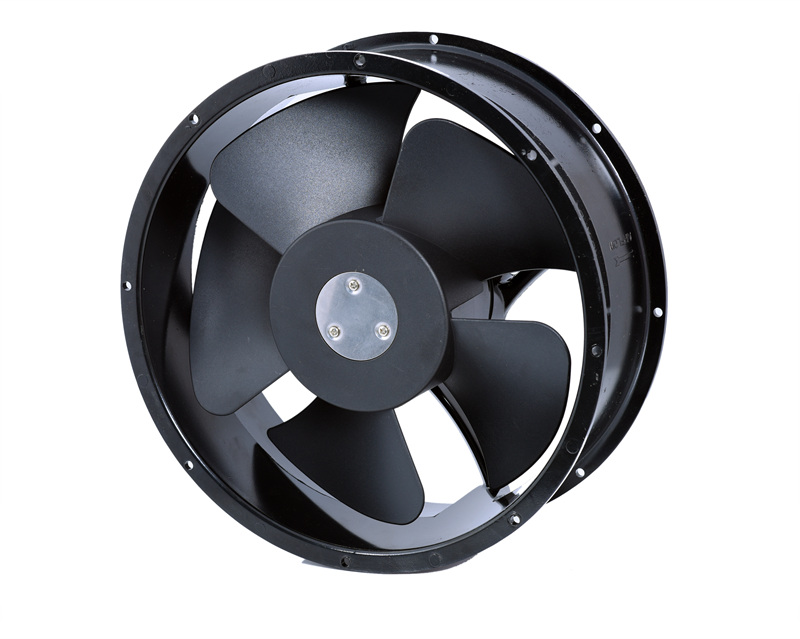

建準SUNON AC Alveolate Motor 254x89 mm

建準SUNON AC Alveolate Motor 254x89 mm

Model	A1259-XBL TC.N.GN
Length (mm)	254
Width (mm)	254
Thickness (mm)	89
Size L x H x W (mm)	Ø254X89
Voltage	115
Bearing Type	2BALL
Frequency (Hz)	50/60
Power Current (mA - VDC, Amp - VAC)	0.83/1.10
Power Consumption (Watts)	88/120
RPM (Speed)	2600/2900
CFM (Air Flow)	800/870
Static Pressure (Inch_H2O)	0.76/0.62
Noise (DBA)	68/70
Weight (g)	2400

Model	A1259-HBL.TC.N.GN
Length (mm)	254
Width (mm)	254
Thickness (mm)	89
Size L x H x W (mm)	Ø254X89
Voltage	115
Bearing Type	2BALL
Frequency (Hz)	50/60
Power Current (mA - VDC, Amp - VAC)	0.60/0.65
Power Consumption (Watts)	63/72
RPM (Speed)	2100/1900
CFM (Air Flow)	650/585
Static Pressure (Inch_H2O)	0.35/0.31
Noise (DBA)	62/60
Weight (g)	2300

Model	A1259-MBL TC.N.GN
Length (mm)	254
Width (mm)	254
Thickness (mm)	89
Size L x H x W (mm)	Ø254X89
Voltage	115
Bearing Type	2BALL
Frequency (Hz)	50/60
Power Current (mA - VDC, Amp - VAC)	0.23/0.23
Power Consumption (Watts)	20/23
RPM (Speed)	1400/1600
CFM (Air Flow)	425/500
Static Pressure (Inch_H2O)	0.27/0.31
Noise (DBA)	54/57
Weight (g)	2300

檔案說明

档案下载1(0.11MB)
