120x120x31 mm (AC Blower)

詢價清單 (0)

120x120x31mm(ACBlower)

120x120x31 mm (AC Blower)

品牌
建準SUNON
型號
AB1123-HSL(T).GN

AB1123-HBL(T).GN

AB2123-HSL(T).GN

AB2123-HBL(T).GN
備註
20-22CFM

AC Blower

產品介紹

請拖曳表格

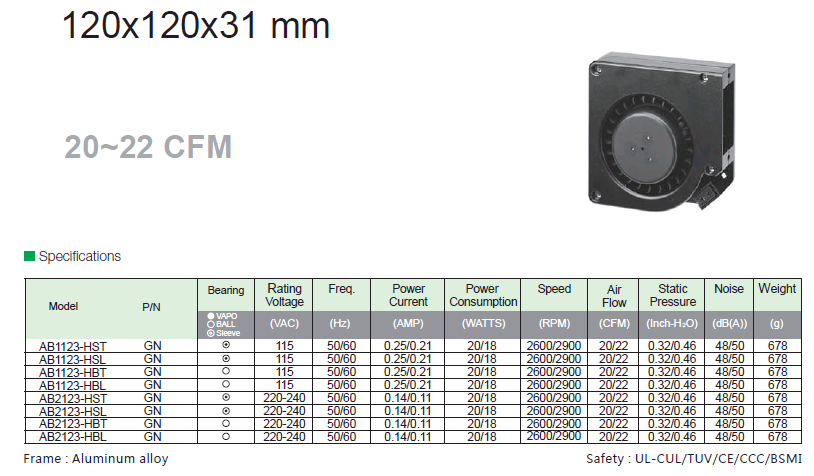

建準SUNON AC Blower 120x120x31 mm

建準SUNON AC Blower 120x120x31 mm

Model	AB1123-HSL GN
Length (mm)	120
Width (mm)	120
Thickness (mm)	31
Size L x H x W (mm)	120X120X31
Voltage	115
Bearing Type	SLEEVE
Frequency (Hz)	50/60
Power Current (mA - VDC, Amp - VAC)	0.25/0.21
Power Consumption (Watts)	20/18
RPM (Speed)	2900/2600
CFM (Air Flow)	22/20
Static Pressure (Inch_H2O)	0.46/0.32
Noise (DBA)	50/48
Weight (g)	678

Model	AB1123-HBL GN
Length (mm)	120
Width (mm)	120
Thickness (mm)	31
Size L x H x W (mm)	120X120X31
Voltage	115
Bearing Type	2BALL
Frequency (Hz)	50/60
Power Current (mA - VDC, Amp - VAC)	0.25/0.21
Power Consumption (Watts)	20/18
RPM (Speed)	2600/2900
CFM (Air Flow)	20/22
Static Pressure (Inch_H2O)	0.32/0.46
Noise (DBA)	48/50
Weight (g)	678

Model	AB2123-HSL GN
Length (mm)	120
Width (mm)	120
Thickness (mm)	31
Size L x H x W (mm)	120X120X31
Voltage	220-240
Bearing Type	SLEEVE
Frequency (Hz)	50/60
Power Current (mA - VDC, Amp - VAC)	0.14/0.11
Power Consumption (Watts)	20/18
RPM (Speed)	2600/2900
CFM (Air Flow)	20/22
Static Pressure (Inch_H2O)	0.32/0.46
Noise (DBA)	48/50
Weight (g)	67

Model	AB1123-HBL.GN
Length (mm)	120
Width (mm)	120
Thickness (mm)	31
Size L x H x W (mm)	120X120X31
Voltage	115
Bearing Type	2BALL
Frequency (Hz)	50/60
Power Current (mA - VDC, Amp - VAC)	0.25/0.21
Power Consumption (Watts)	20/18
RPM (Speed)	2600/2900
CFM (Air Flow)	20/22
Static Pressure (Inch_H2O)	0.32/0.46
Noise (DBA)	48/50
Weight (g)	678
