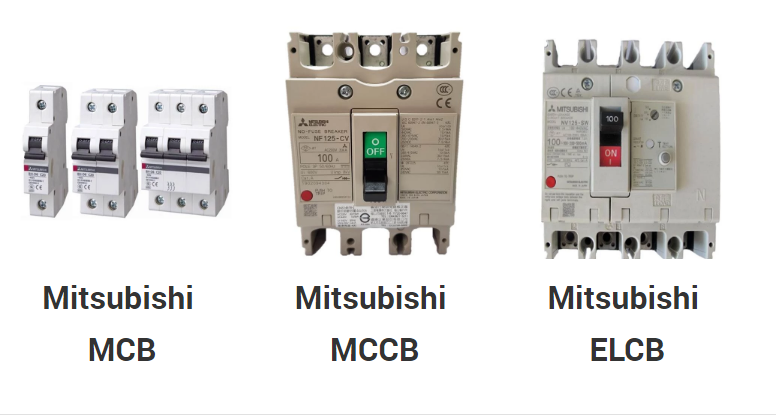

Mitsubishi MCB/MCCB/ELCB

品牌
Mitsubishi
型號
Quality Mitsubishi energy electrical motor driver Miniature circuit breaker mccb elcb
規格
Electrical Equipment & Supplies>>Industrial Controls>>Circuit Breakers
備註
motor driver Mitsubishi energy braker circuit breaker powdercoating machine mccb elcb

Mitsubishi circuit breaker motor driver Miniature circuit breaker mccb elcb

motor driver Mitsubishi energy distributing Miniature circuit breaker mccb elcb

產品介紹

請拖曳表格

>>Why ELCB?

Prevention of hazards and damage (such as electrical shock, electrical fire, and device damage)
that may occur in electrical equipment (as stipulated in IEC 60364)

A. Protection against direct contact

Protection of people from harzards(i.e.,electrical shock) that may occur due to touching charged parts of electrical equipment.

Use if ELCB with rated sensitive current not exceeding 30mA is recommended as the additional protective device.

B. Protection against indirect contact

Protection of people from electrical shock that may occur due to touching exposed conductive parts( such as metal frame of the device) when a fault occurs in electrical equipment.

As one of the protective measures, depending on the condition in TT or TN-S system, the automation cutoff of power supply with ELCB is specified in IEC60364-4-41.

For the details of the installation systems and how to apply ELCB, please refer to the following chart and flowchart.

lity Mitsubishi energy electrical motor driver Miniature circuit breaker mccb elcb
motor driver Mitsubishi energy braker circuit breaker powdercoating machine mccb elcb
Mitsubishi circuit breaker motor driver Miniature circuit breaker mccb elcb
motor driver Mitsubishi energy distributing Miniature circuit breaker mccb elcb

>>What is the different between MCB and MCCB?

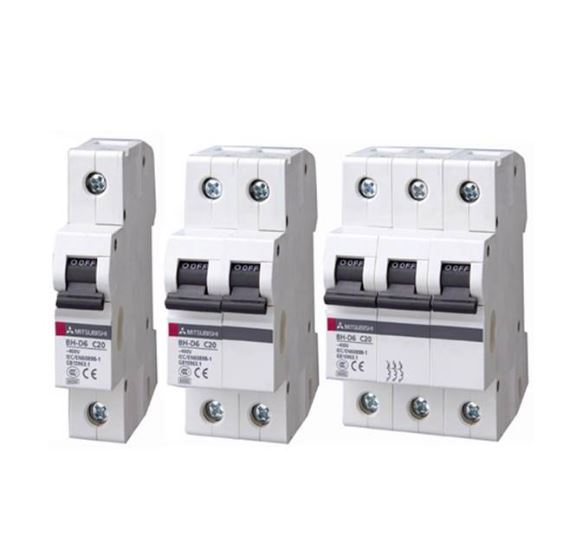

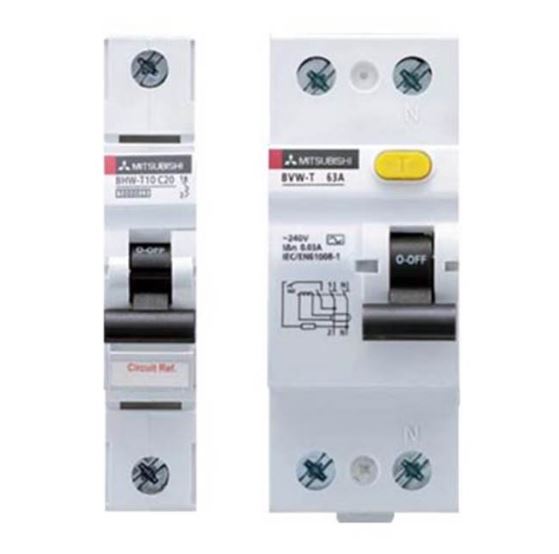

MCB is a miniature circuit breaker which is used to break small currents.(Like in domestic LT circuits)
* The ratings usually end up to 100 A
* Interrupting rating of under 18000 A
* Trip characteristics may not be adjusted
* Suitable for low current circuits (low energy requirement), i.e. home wiring.
* Generally, use where normal current is less than 100 A

MCCB is a molded case circuit breaker which has a rugged construction as it can break
Larger currents usually from (100~1000 A)
* Rated current in the range of 10-2500 A
* Thermal operated for overload and Magnetic operation for instant trip in SC(Short Circuit conditions)
* Interrupting rate can be around 10k~200k amps
* Suitable for high power rating and high energy i.e. commercial and industrial use
* Generally, use where normal current is more than 100 A

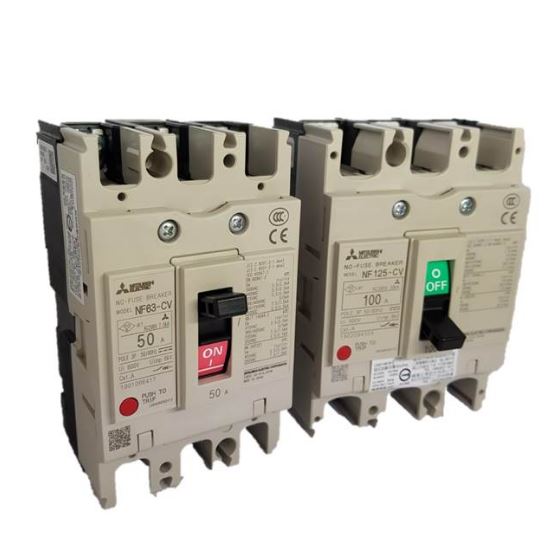

MCCB

NF30-CS/NF125-CV/NF800-CEW

Frame (A)				30		100	125	800
Model				NF30-CS		NF125-CV		NF800-CEW
Rated current In (A) Rated ambient temperture 40°C (45°C for marine use)				3, 5, 10, 15, 20, 30		50 (60) 63 (75) 80 100	125	Adjustable 400 450 500 600 700 800
Number of poles				2	3	2/3	2/3	3
Rated insulation voltage Ui (V)				500		600	600	690
Rated short-circuit breaking capacities (kA)	IEC 60947-2 EN 60947-2 (Icu/Ics)	AC	690V	-		-	-	-
			500V	-		7.5/4	7.5/4	18/9
			440V	-		10/5	10/5	36/18
			415V	1.5/1.5		10/5	10/5	36/18
			400V	1.5/1.5		10/5	10/5	36/18
			380V	1.5/1.5		10/5	10/5	40/20
			230V	2.5/2 (240V)		30/15	30/15	50/25
			200V	2.5/2 (240V)		30/15	30/15	50/25
		DC	250V	-		7.5/4 (*4)	7.5/4 (*4)	-
Rated impulse withstand voltage Uimp (kV)				4		8	8	8

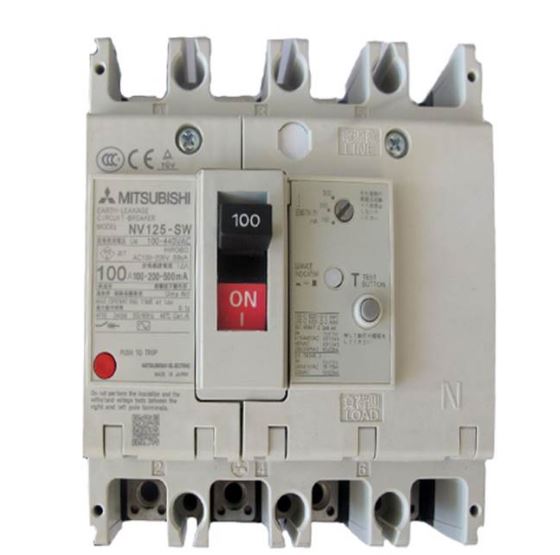

ELCB

NV32-SV/NV125-SV/NV800-SEW

Frame (A)			30	32	100	125	800
Model			NV32-SV		NV125-SV		NV800-SEW
Rated current In (A) Rated ambient temperture 40°C			(5) 6 10 (15) 16 20 25 (30)	(32)	(15) 16 20 (30) 32 40 50 (60) 63 (75) 80 100 (*3)	125	Adjustable 400 450 500 600 700 800
Number of poles			3	3	3,4	3,4	3
Phase line (*1)			3f3W, 1f3W, 1f2W	3f3W, 1f3W, 1f2W	3f3W,1f3W,1f2W		3f3W, 1f3W,1f2W
Rated operational voltage Ue (V) (*2) AC			100-440	100-440	100-400/200-440		200-440
High-speed type	Rated current sensitivity (mA)		30,100/200/500 selectable	30,100/200/500 selectable	30,100/200/500 selectable		-
	Max. operating time (s)	at I∆n	0.1	0.1	0.1		-
		at 5I∆n	0.04	0.04	0.04		-
Time-delay type	Rated current sensitivity (mA)		-	-	(100/200/500selectable)		100/200/500selectable
	Max. operating time (s) (*3)		-	-	(0.45/1.0/2.0selectable)		0.45/1.0/2.0selectable
	Internal non-operating (s) (or more)		-	-	(0.1/0.5/1.0)		0.1/0.5/1.0
Earth leakage indication system			Mechanical type (button)
