Pilot Light Pushbutton Contact Block and Selector Switch Head
pilot light indicator light led signal lamp LED indicator
metal pushbutton flat pushbutton head selector 2 position 3position switch head
Body Fixing Collar Single Contact Block 1NO/1NC/2NO

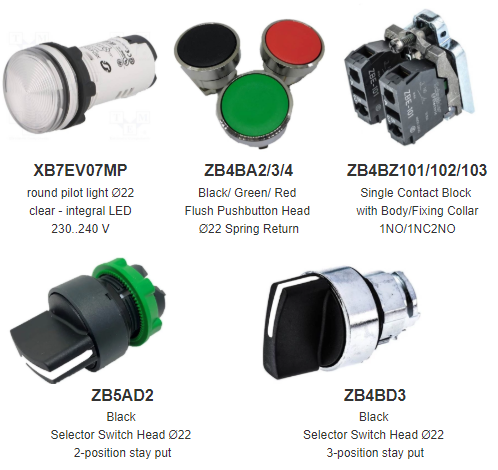

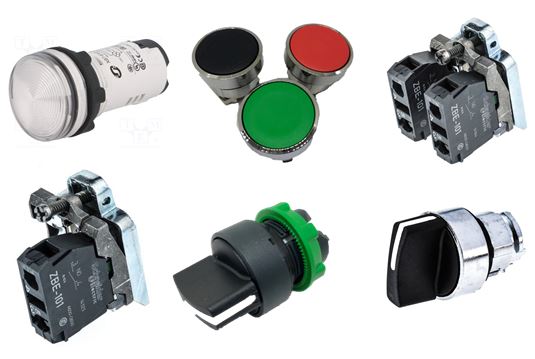

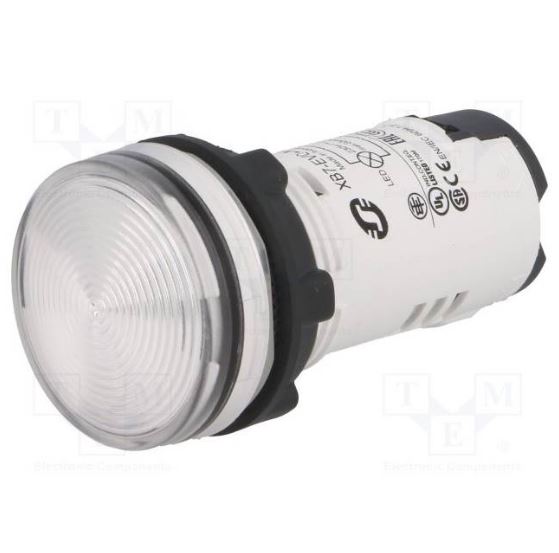

round pilot light Ø22 - clear - integral LED - 230..240 V - screw clamp terminal
Range of product
|
Harmony XB7
|
||
Product or component type
|
Pilot light
|
||
Device short name
|
XB7
|
||
Sale per indivisible quantity
|
10
|
||
Shape of signaling unit head
|
Round
|
||
Cap/Operator or lens colour
|
Clear
|
||
Light source
|
LED
|
||
Bulb base
|
Integral LED
|
||
[Us] rated supply voltage
|
230...240 V AC, 50/60 Hz
|
||
Tightening torque
|
0.8...1.2 N.m conforming to EN 60947-1
|
||
[Ui] rated insulation voltage
|
250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
|
||
Signalling type
|
Steady
|
||
Supply voltage limits
|
195...264 V AC
|
||
Current consumption
|
16...20 mA
|
||
Service life
|
70000 h at rated voltage and 25 °C
|
Height
|
29 mm
|
||
Width
|
29 mm
|
||
Depth
|
54 mm
|
||
Product weight
|
0.02 kg
|
||
Mounting diameter
|
22 mm
|

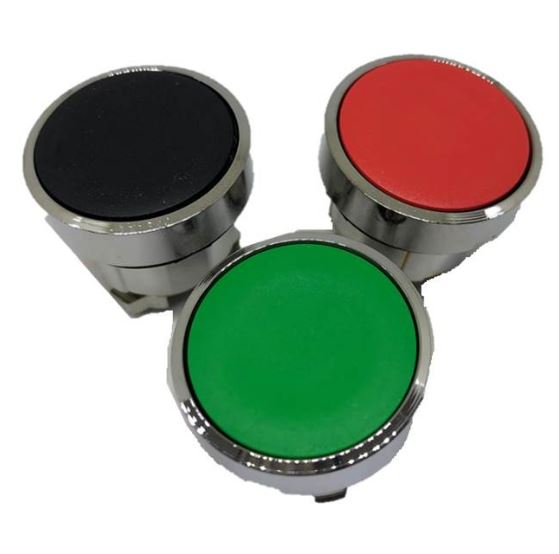

black/ green/ red flush pushbutton head Ø22 spring return unmarked
Range of product
|
Harmony XB4
|
||
Product or component type
|
Head for non-illuminated push-button
|
||
Device short name
|
ZB4
|
||
Bezel material
|
Chromium plated metal
|
||
Sale per indivisible quantity
|
1
|
||
Head type
|
Standard
|
||
Shape of signaling unit head
|
Round
|
||
Type of operator
|
Spring return
|
||
Operator profile
|
Black/ Green/ Red flush unmarked
|
||
Mechanical durability
|
10000000 cycles
|
CAD overall width
|
29 mm
|
||
CAD overall height
|
29 mm
|
||
CAD overall depth
|
28 mm
|
||
Mounting diameter
|
22 mm
|
single contact block with body/fixing collar 1NO/ 1NC/ 2NO screw clamp terminal
Range of product
|
Harmony XB4
|
||
Product or component type
|
Complete body/contact assembly
|
||
Device short name
|
ZB4
|
||
Fixing collar material
|
Zamak
|
||
Sale per indivisible quantity
|
1
|
||
Head type
|
Standard
|
||
Contacts type and composition
|
1 NO/ 1 NC/ 2NO
|
||
Contact operation
|
Slow-break
|
||
Contact block type
|
Single
|
||
Device composition
|
Body/ Fixing collar
|
||
Mechanical durability
|
5000000 cycles
|
||
Short-circuit protection
|
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
|
||
[Ith] conventional free air thermal
current |
10 A conforming to EN/IEC 60947-5-1
|
||
[Ui] rated insulation voltage
|
600 V (degree of pollution: 3) conforming to EN 60947-1
|
||
[Uimp] rated impulse withstand voltage
|
6 kV conforming to EN 60947-1
|
CAD overall width
|
30 mm
|
||
CAD overall height
|
47 mm
|
||
CAD overall depth
|
37 mm
|
||
Product weight
|
0.053 kg~0.062kg
|

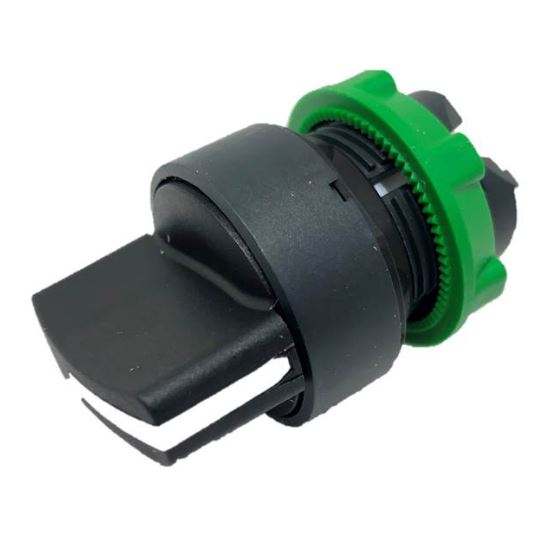

black selector switch head Ø22 2-position/ 3-position stay put
Range of product
|
Harmony XB5/ Harmony XB4
|
Product or component type
|
Head for selector switch
|
Device short name
|
ZB5/ ZB4
|
Bezel material
|
Dark grey plastic/ Chromium plated metal
|
Head type
|
Standard
|
Sale per indivisible quantity
|
1
|
Shape of signaling unit head
|
Round
|
Type of operator
|
Stay put
|
Operator profile
|
Black standard handle
|
Operator position information
|
2 positions 90°/ 3 positions +/- 45°
|
Mechanical durability
|
1000000 cycles
|
CAD overall width
|
1.14 in (29 mm)
|
CAD overall height
|
1.14 in (29 mm)
|
CAD overall depth
|
0.87 in (22 mm)
|
Mounting diameter
|
1.73 in (44 mm)
|
Product weight
|
0.017~0.04 kg
|
