Pump

iSHAN YESA YESB Pump

Name: 汎武電機工業股份有限公司（總公司/高雄營業所）
Address: 高雄市燕巢區安林路1號
Telephone: 07-6167936

品牌
iSHAN
型號

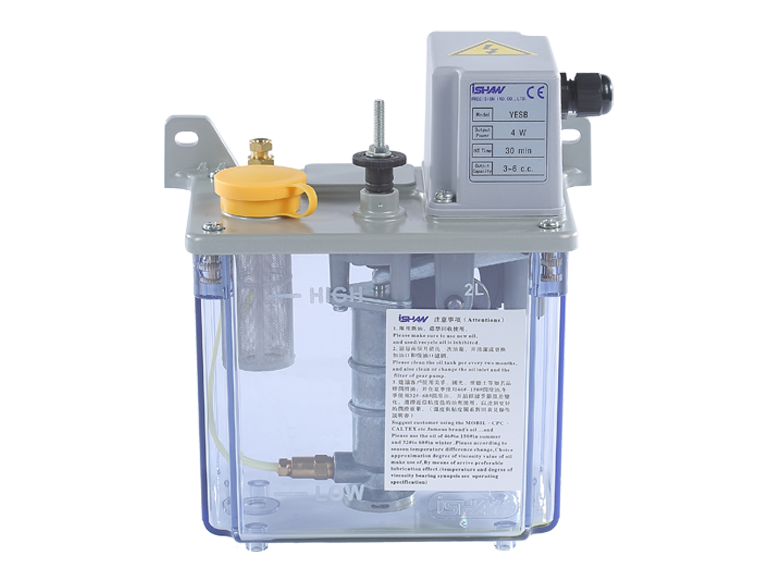

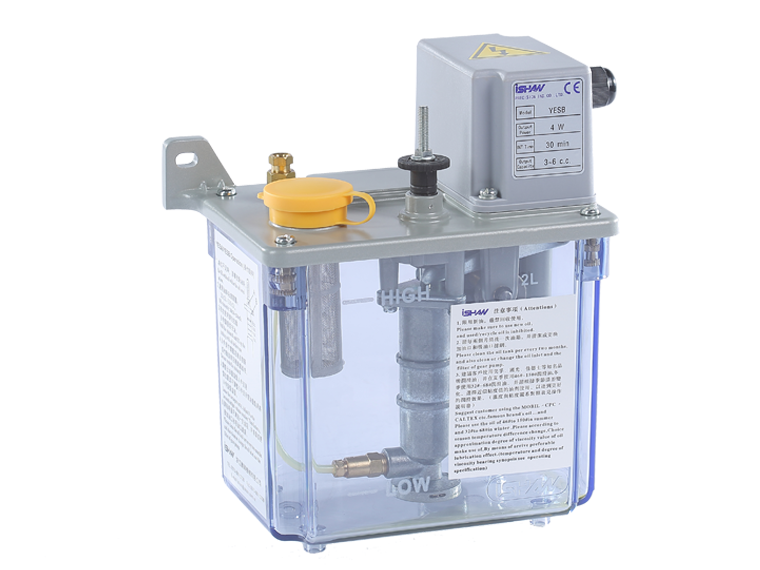

iSHAN YESA YESB Automatic Oiler Lubricator Hydraulic Lubricant Oil Piston Pump
規格
All Industries > Tools & Hardware > Pumps & Parts > Pumps
備註

ishan yesb thin oil resistance automatic lubricant piston pump

yesa yesb hydraulic piston lubricating Oil piston pump

yesb 2l 3l 4l 110v 220vac 4w oiler lubricator structure

請拖曳表格

Why Choose iSHAN YESA/YESB

won the EU CE certification.
YESB has a liquid level switch, which can output the abnormal signal of the liquid level.
the intermittent time in the factory, according to the requirements of the customer.
Type YESB oil injection machine is widely used in machine tools, textile, plastic, packaging, woodworking and forging and other machinery.
Include check valves to prevent the reverse flow.
Oil viscosity (40°C)： 20~150cSt.

What is YESA/YESB Specification

Type	YESA	YESB
Interval time (minutes)	3/5/10/15/30/60 (not adjustable)	3/5/10/15/30/60 (not adjustable)
Voltage (single phase)	110 or 220 V	110 or 220 V
Comsumption Power (w)	5	5
Capacity Output	-	0.5A 100VAC
Output Bore	Ø4 or Ø6	Ø4 or Ø6
Discharge Pressure Mpa (kgf/cm2)	0.3 (3)	0.3 (3)
Output volume (cc/cy)	3-6	3-6
Tank capacity (L)	2	2
Weight (Kg)	1.5	1.5
