| 品牌 | 3M |
|---|---|
| 型號 | quick shipping 3M cold shrink termination kit 5630K series 5690 series |
| 規格 | All Industries>Electronic Components & Supplies>Electronic Accessories & Supplies>Insulation Materials & Elements |
Remarks
medium voltage terminations 3M outdoor skirted kit 4 skirt 6 skirt 8 skirt
5kV-15kV 5kV-25/28kV cable termination silicone rubber insulation
cable insulation Cold Shrink Silicone Termination plastic core
Product Introduction
Download
Product Description
>>Why choose3MMediumVoltage Termination Cold Shrink Termination Kit 5630K Series?
3M™Cold Shrink QT II 5630K Series Termination Kit includes three 4 skirt, 1 piece terminations. | ||||
It ensures a pliable, tight seal for tape shield, wire shield and UniShield®power cables. | ||||
The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15kV. |
>>Why choose3MMediumVoltage Termination Cold Shrink Termination Kit5690K Series?

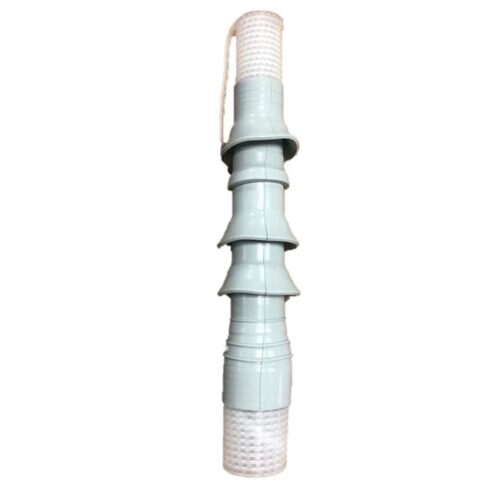

3M Cold Shrink QT-II terminations provide easy installation for indoor and outdoor applications. | ||||
Based on specially formulated,track-resistant silicone rubber insulators with built-in Hi-K stress relief. | ||||
The insulators are pre-stretched around a spiral-wound, plastic core. | ||||
When the terminator is slipped over a properly prepared cable and the core is removed, the terminator immediately shrinks to the cable’s dimensions. | ||||
The result is a void-free, flexible seal without special tools or torches. | ||||
Meets requirements of IEEE Standard 48-1990 for Class 1 terminations unless noted. |
>>What are the main features of3M Medium Voltage Termination Cold Shrink Termination Kit 5630K Series-4 Skirt?
>>What are the specification of3M Medium Voltage Termination Cold Shrink Termination Kit 5630K Series-4 Skirt?

>>What are the main features of3M Medium Voltage Termination Cold Shrink Termination Kit 5690K Series-6 Skirt?

>>What are the specification3M Medium Voltage Termination Cold Shrink Termination Kit 5690K Series-6 Skirt?

>>What are the main features of3M Medium Voltage Termination Cold Shrink Termination Kit 5690K Series-8 Skirt?

>>What are the specification of3M Medium Voltage Termination Cold Shrink Termination Kit 5690K Series-8 Skirt?

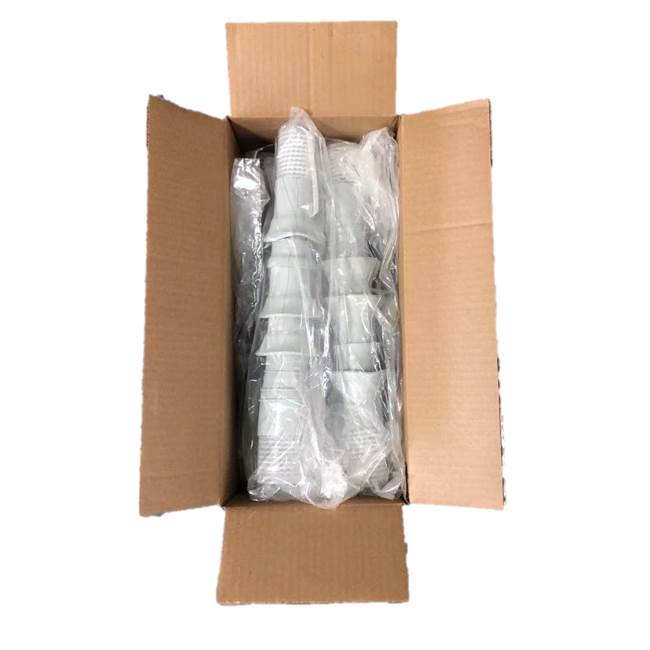

Packing &Delivery
