| 品牌 | Delta |
|---|---|

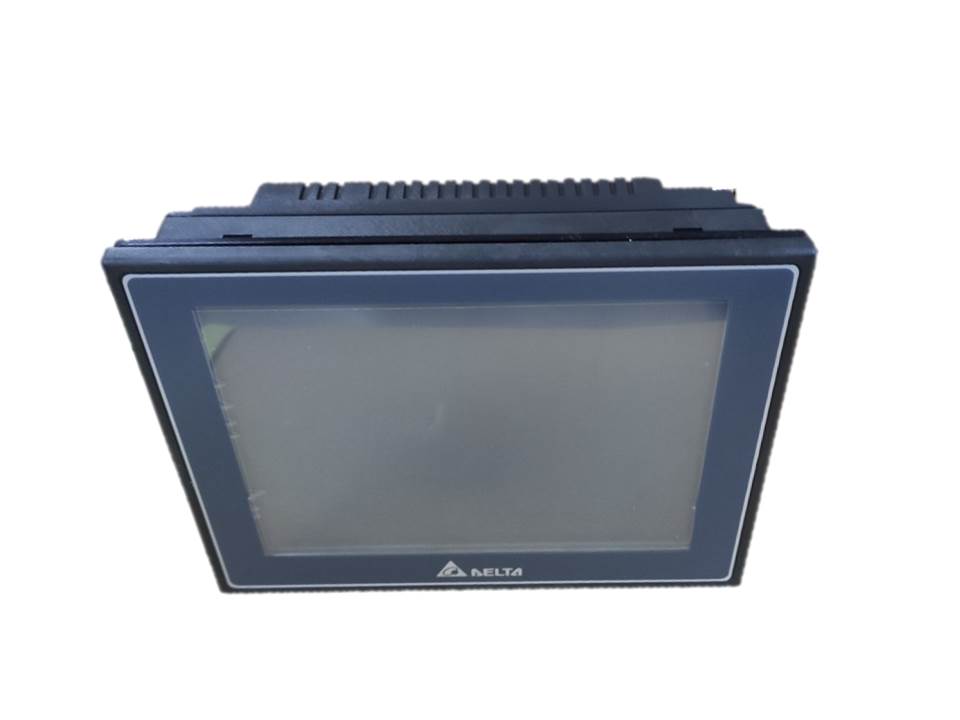

| 型號 | Delta DOP-107-EG TFT LCD 7 Inch Replacement display HMI Touch Screen |
| 規格 | All Industries > Electrical Equipment & Supplies > Industrial Controls > Other Electrical Equipment |
Remarks
delta 7″ lcd tft display human machine interface
delta dop-107-eg replacement lcd screen hmi screen
delta hmi plc dop 7 inch widescreen touch screen
Product Introduction
Others
Why Choose Delta HMI
How Big is Dop-107EG
What is Dop-107EG Specification
Model | DOP-107EG | |||
Display | Panel type | 7″ TFT LCD (65535 colors) | ||
Resolution | 800 x 600 pixels | |||
Back light | LED backlight (half-life under room temp. 25°C >20,000 hours)” | |||
Display range | 141.00 x 105.75 mm | |||
Brigtness | 450 cd/m2 (Typ.) | |||
CPU | ARM Cortex-A8 (800 MHz) | |||
Flash ROM | 256 Mbytes | |||
RAM | 256 Mbytes | |||
Touchscreen | 4-wire resistive touchscreen >10,000,000 operated | |||
Buzzer | Multi-tone frequency (2 K-4 KHz) / 80 dB | |||
Network interface | 10/100 Mbps Auto sensing (with built-in isolated power circuit) | |||
USB | 1 USB slave Ver 2.0;1 USB host Ver 2.0 | |||
SD | SD* 1 | |||
Serial communication port | COM1 | RS-232 (supporting flow control) | ||
COM2 | RS-232 (supporting flow control) / RS-485 | |||
COM3 | RS-422 / RS-485 | |||
Auxiliary function key | N/A | |||
Calendar | Built-in | |||
Cooling method | Natural cooling | |||
Approvals | CE / UL (please use shielding network cable and magnetic ring with the filter of 300 ohm / 100 MHz) | |||
Panel waterproof level | IP65 / NEMA4 | |||
Operation voltage | DC +24 V (-15% to +15%) (please use an isolated power supply) Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) | |||
Leakage current | 500 VAC for 1 minute (between DC24V terminal and FG terminal) | |||
Power consumption | 8.4 W (Max) | |||
Backup battery | 3V lithium battery CR2032 x 1 | |||
Backup battery life | About 3 years or more at 25°C (subject to operation temperature and condition) | |||
Operation temperature | 0°C to 50°C (32°F to 122°F) | |||
Storage temperature | -20°C to +60°C (-4°F to 140°F) | |||
Operating environment | 10% to 90% RH [0°C to 40°C], 10% to 55% RH [41°C to 50°C] | |||
Vibration resistance | Conforms to IEC60068-2-27:11 ms, 15 G Peak, in X, Y, Z directions each for 6 times | |||
Shock resistance | Conforms to IEC60068-2-27:11 ms, 15 G Peak, in X, Y, Z directions each for 6 times | |||
Dimension (W) x (H) x (D) | 184 x 144 x 50 | |||
Mounting dimension (W) x (H) mm | 172.4 x 132.4 | |||
Weight | Approx. 800 g | |||
