| 品牌 | Mitsubishi |
|---|---|
| 型號 | Quality Mitsubishi energy electrical motor driver Miniature circuit breaker mccb elcb |
| 規格 | Electrical Equipment & Supplies>>Industrial Controls>>Circuit Breakers |
motor driver Mitsubishi energy braker circuit breaker powdercoating machine mccb elcb
Mitsubishi circuit breaker motor driver Miniature circuit breaker mccb elcb
motor driver Mitsubishi energy distributing Miniature circuit breaker mccb elcb
>>Why ELCB?
Prevention of hazards and damage (such as electrical shock, electrical fire, and device damage)
that may occur in electrical equipment (as stipulated in IEC 60364)
A. Protection against direct contactProtection of people from harzards(i.e.,electrical shock) that may occur due to touching charged parts of electrical equipment. |  |
 | B. Protection against indirect contactProtection of people from electrical shock that may occur due to touching exposed conductive parts( such as metal frame of the device) when a fault occurs in electrical equipment. |
lity Mitsubishi energy electrical motor driver Miniature circuit breaker mccb elcb
motor driver Mitsubishi energy braker circuit breaker powdercoating machine mccb elcb
Mitsubishi circuit breaker motor driver Miniature circuit breaker mccb elcb
motor driver Mitsubishi energy distributing Miniature circuit breaker mccb elcb

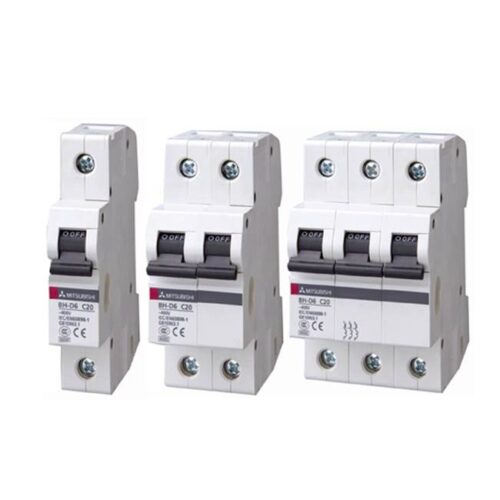

MCBis aminiature circuit breakerwhich is used to break small currents.(Like in domestic LT circuits)
* The ratings usually end up to 100 A
* Interrupting rating of under 18000 A
* Trip characteristics may not be adjusted
* Suitable for low current circuits (low energy requirement), i.e. home wiring.
* Generally, use where normal current is less than 100 A
MCCBis amolded case circuit breakerwhich has a rugged construction as it can break
Larger currents usually from (100~1000 A)
* Rated current in the range of 10-2500 A
* Thermal operated for overload and Magnetic operation for instant trip in SC(Short Circuit conditions)
* Interrupting rate can be around 10k~200k amps
* Suitable for high power rating and high energy i.e. commercial and industrial use
* Generally, use where normal current is more than 100 A

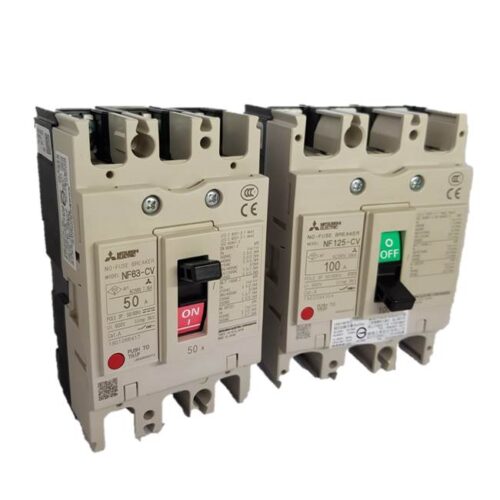

MCCB
NF30-CS/NF125-CV/NF800-CEW
Frame (A) | 30 | 100 | 125 | 800 | ||||
Model | NF30-CS | NF125-CV | NF800-CEW | |||||
Rated current In (A) Rated ambient temperture 40°C (45°C for marine use) | 3, 5, 10, 15, 20, 30 | 50 (60) 63 (75) 80 100 | 125 | Adjustable 400 450 500 600 700 800 | ||||
Number of poles | 2 | 3 | 2/3 | 2/3 | 3 | |||
Rated insulation voltage Ui (V) | 500 | 600 | 600 | 690 | ||||
Rated short-circuit breaking capacities (kA) | IEC 60947-2 EN 60947-2 (Icu/Ics) | AC | 690V | – | – | – | – | |
500V | – | 7.5/4 | 7.5/4 | 18/9 | ||||
440V | – | 10/5 | 10/5 | 36/18 | ||||
415V | 1.5/1.5 | 10/5 | 10/5 | 36/18 | ||||
400V | 1.5/1.5 | 10/5 | 10/5 | 36/18 | ||||
380V | 1.5/1.5 | 10/5 | 10/5 | 40/20 | ||||
230V | 2.5/2 (240V) | 30/15 | 30/15 | 50/25 | ||||
200V | 2.5/2 (240V) | 30/15 | 30/15 | 50/25 | ||||
DC | 250V | – | 7.5/4 (*4) | 7.5/4 (*4) | – | |||
Rated impulse withstand voltage Uimp (kV) | 4 | 8 | 8 | 8 | ||||

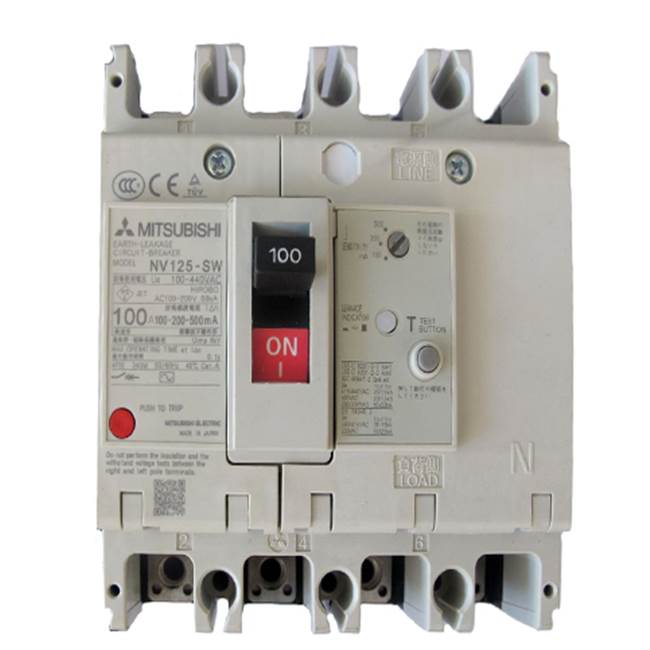

ELCB
NV32-SV/NV125-SV/NV800-SEW
Frame (A) | 30 | 32 | 100 | 125 | 800 | ||
Model | NV32-SV | NV125-SV | NV800-SEW | ||||
Rated current In (A) Rated ambient temperture 40°C | (5) 6 10 (15) 16 20 25 (30) | (32) | (15) 16 20 (30) 32 40 50 (60) 63 (75) 80 100 (*3) | 125 | Adjustable 400 450 500 600 700 800 | ||
Number of poles | 3 | 3 | 3,4 | 3,4 | 3 | ||
Phase line (*1) | 3f3W, 1f3W, 1f2W | 3f3W, 1f3W, 1f2W | 3f3W,1f3W,1f2W | 3f3W, 1f3W,1f2W | |||
Rated operational voltage Ue (V) (*2) AC | 100-440 | 100-440 | 100-400/200-440 | 200-440 | |||
High-speed type | Rated current sensitivity (mA) | 30,100/200/500 selectable | 30,100/200/500 selectable | 30,100/200/500 selectable | – | ||
Max. operating time (s) | at I∆n | 0.1 | 0.1 | 0.1 | – | ||
at 5I∆n | 0.04 | 0.04 | 0.04 | – | |||
Time-delay type | Rated current sensitivity (mA) | – | – | (100/200/500selectable) | 100/200/500selectable | ||
Max. operating time (s) (*3) | – | – | (0.45/1.0/2.0selectable) | 0.45/1.0/2.0selectable | |||
Internal non-operating (s) (or more) | – | – | (0.1/0.5/1.0) | 0.1/0.5/1.0 | |||
Earth leakage indication system | Mechanical type (button) | ||||||
