Products
| 品牌 | Schneider |
|---|---|

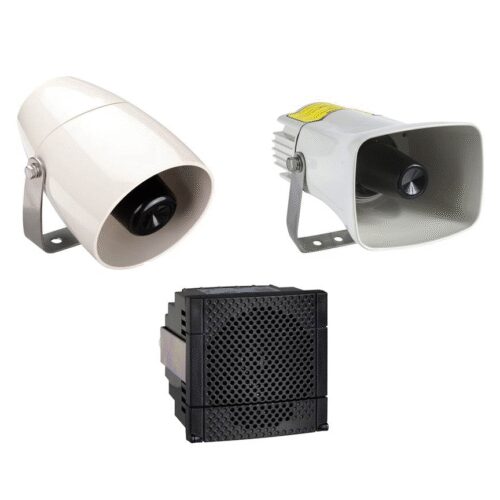

| 型號 | Schneider XVS Series Multi-sound Siren Speaker Electronic Alarm |
| 規格 |
Remarks
schneider siren speaker siren alarm electronic alarm
schneider alarm speaker sound alarm electronic siren
schneider sound siren speaker alarm siren loud sound alarm
Product Introduction
>>Why choose Schneider?
Meaningful, Inclusive, Empowered
>>What are the features of XVS10BMW?

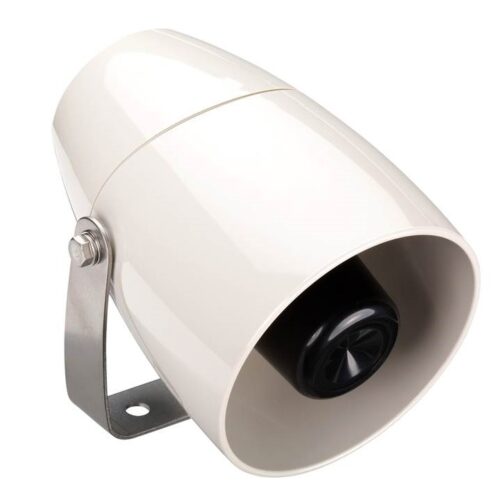

Multi-sound Siren 12/24VDC 2 Tones Siren Speaker Siren Alarm
Range of product | Harmony XVS | ||
Product or component type | Siren | ||
Device short name | XVS | ||
Colour | White | ||
Signalling type | 2 tones siren | ||
[Us] rated supply voltage | 12 V AC/DC 24 V AC/DC | ||
Noise level | 106 dB (continuous or intermittent tone) at 1 m | ||
Material | PC (body) | ||
Marking | CE | ||
[Uimp] rated impulse withstand voltage | 0.8 kV | ||
Current consumption | 500 mA 300 mA at 24 V | ||
Clamping connection capacity | <= 1 x 1.5 mm² | ||
Electrical connection | Cable :6.5…8.5 mm | ||
>>How big is XVS10BMW?
electronic alarm sound alarm siren speaker siren alarm electronic siren
Height | 114 mm | ||
Width | 114 mm | ||
Depth | 153.2 mm | ||
Mounting diameter | 22 mm | ||
>>What environment couldXVS10BMW?
electronic alarm sound alarm siren speaker siren alarm electronic siren
>>What are the features ofXVS14BMW?

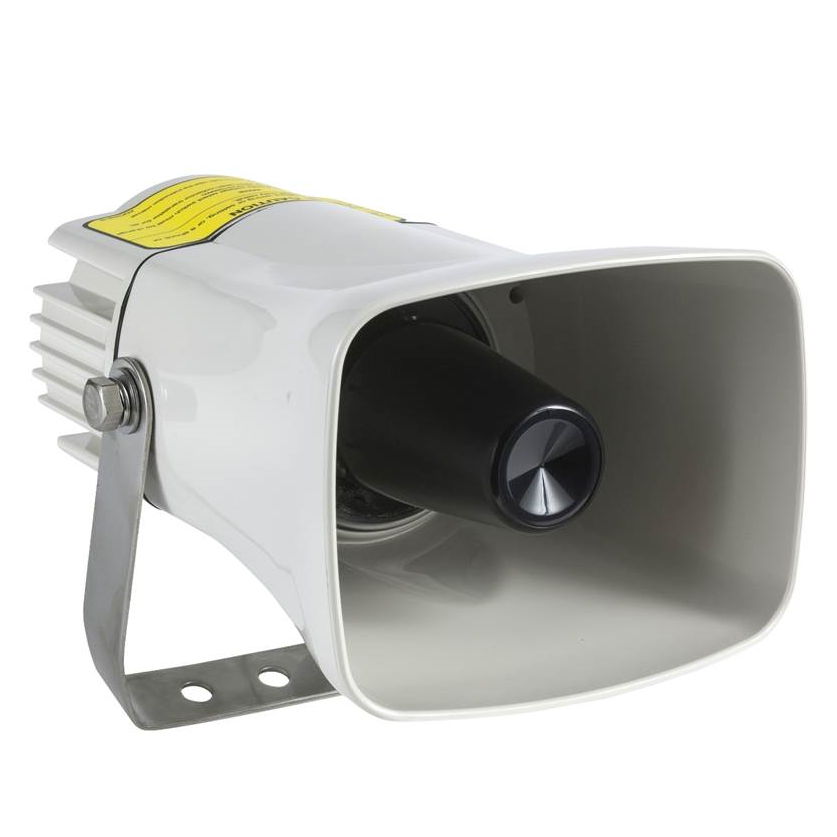

Multi-sound Siren Siren Speaker Siren Alarm
Range of product | Harmony XVS | ||
Product or component type | Multisound siren | ||
Device short name | XVS | ||
Colour | White | ||
Material | PC (polycarbonate) (back cover) ASA (Acrylonitrile Styrene Acrylate) (front) ASA (Acrylonitrile Styrene Acrylate) (back) | ||
Marking | CE | ||
Mounting support | Bracket | ||
[Uimp] rated impulse withstand voltage | 0.8 kV | ||
Current consumption | 250 mA at 12 V 350 mA at 24 V | ||
Electrical connection | Cable :6.5…8.5 mm, 0.33 mm²/ AWG 22 (signalling circuit) Cable :6.5…8.5 mm, 0.52 mm²/ AWG 20 (power circuit) | ||
>>How big isXVS14BMW?
electronic alarm sound alarm siren speaker siren alarm electronic siren
Width | 140 mm | ||
Height | 114 mm | ||
Depth | 223 mm | ||
Fixing mode | 3 holes Ø9 mm | ||
>>What environment could XVS14BMW be used?
electronic alarm sound alarm siren speaker siren alarm electronic siren
>>What are the features ofXVS72BMBN?

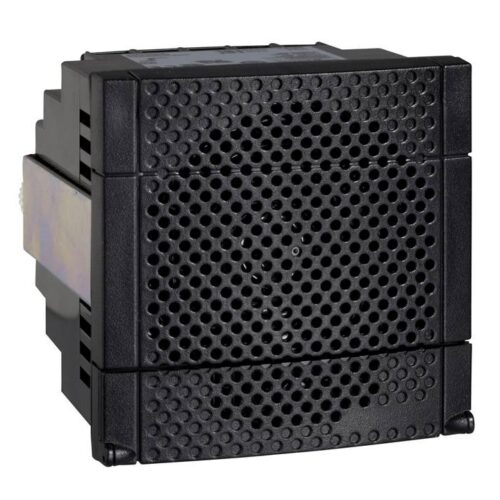

Electronic Alarm NPN Black Electronic Alarm Speaker Siren Alarm
Range of product | Harmony XVS | ||
Product or component type | Electronic alarm | ||
Device short name | XVS | ||
Colour | Black | ||
Material | PC (polycarbonate) (terminal cover) ABS (acrylonitrile butadiene-styrene) (body) | ||
Marking | CE | ||
Overvoltage category | Class II conforming to EN/IEC 61140 | ||
[Us] rated supply voltage | 12…24 V DC | ||
[Uimp] rated impulse withstand voltage | 0.8 kV | ||
Current consumption | 117 mA at 12 V 125 mA at 24 V 158 mA at 12 V | ||
Clamping connection capacity | <= 1 x 1.5 mm² | ||
>>How big isXVS72BMBN?
electronic alarm sound alarm siren speaker siren alarm electronic siren
Width | 72 mm | ||
Height | 72 mm | ||
Depth | 69.3 mm | ||
Weight | 0.18 kg | ||
Mounting support | 72 mm DIN rail | ||
>>What environment couldXVS72BMBNbe used?
electronic alarm sound alarm siren speaker siren alarm electronic siren
