Products
| 品牌 | Schneider |
|---|---|
| 型號 | Schneider Variable speed drive ATV71 inverter |
| 規格 | Electrical Equipment & Supplies/Power Supplies/Inverters & Converters |
Remarks
Schneider Variable speed drive ATV71 inverter 230*175*130mm
Schneider Variable speed drive ATV71 inverter 200-240V
Schneider Variable speed drive ATV71 inverter 1.3 kVA
Product Introduction

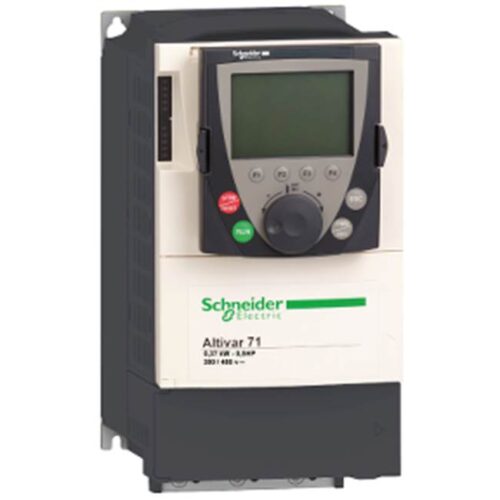

Variable speed drive ATV71
0.37kW-0.5HP – 240V – EMC filter-graphic terminal
Warning Light rotating LED
Main | |
range of product | Altivar 71 |
product or component type | Variable speed drive |
product specific application | Complex, high-power machines |
component name | ATV71 |
motor power kW | 0.37 kW at 200…240 V 3 phases |
motor power hp | 0.5 hp at 200…240 V 3 phases |
motor cable length | <= 50 m Shielded cable <= 100 m Unshielded cable |
power supply voltage | 200…240 V (- 15…10 %) |
network number of phases | 3 phases |
nominal switching frequency | 4 kHz |

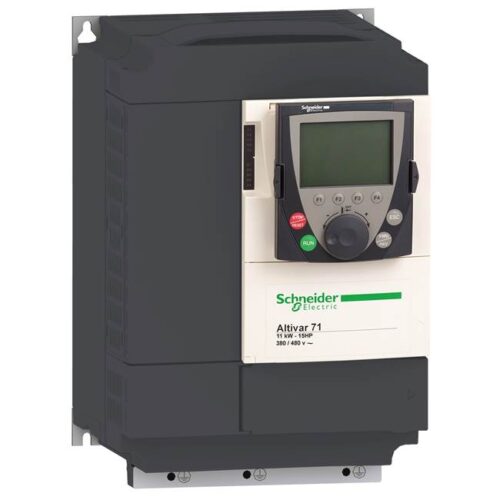

Variable speed drive ATV71
11kW-15HP- 240V-w/o EMC filter-w/o graphic terminal
Warning Light rotating LED
Main | |
range of product | Altivar 71 |
product or component type | Variable speed drive |
product specific application | Complex, high-power machines |
component name | ATV71 |
motor power kW | 11 kW at 200…240 V 3 phases |
motor power hp | 15 hp at 200…240 V 3 phases |
motor cable length | <= 50 m Shielded cable <= 100 m Unshielded cable |
power supply voltage | 200…240 V (- 15…10 %) |
network number of phases | 3 phases |
prospective line Isc | <= 22 kA, 3 phases |
Variable speed drive ATV71
Warning Light rotating LED
0.37kW-0.5HP – 240V -EMCfilter-w/o graphic terminal
Main | |
range of product | Altivar 71 |
product or component type | Variable speed drive |
product specific application | Complex, high-power machines |
component name | ATV71 |
motor power kW | 0.37 kW at 200…240 V 3 phases |
motor power hp | 0.5 hp at 200…240 V 3 phases |
EMC filter | Integrated |
assembly style | With heat sink |

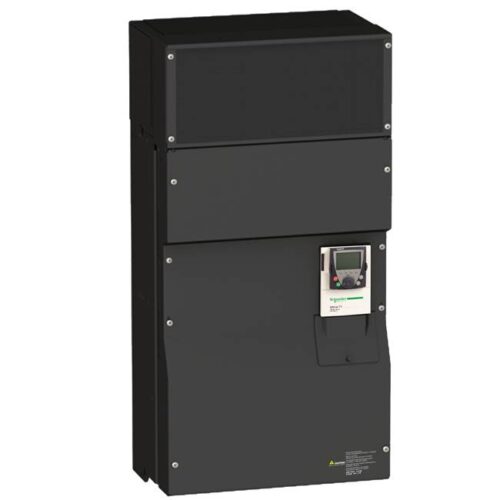

Variable speed drive ATV71
110kW-150HP – 480V – EMC filter-graphic terminal
Main | |
range of product | Altivar 71 |
product or component type | Variable speed drive |
product specific application | Complex, high-power machines |
component name | ATV71 |
motor power kW | 110 kW at 380…480 V 3 phases |
motor power hp | 150 hp at 380…480 V 3 phases |
motor cable length | <= 100 m Shielded cable <= 200 m Unshielded cable |
power supply voltage | 380…480 V (- 15…10 %) |
prospective line Isc | 35 kA, 3 phases |
Variable speed drive ATV71
110kW – 690V – EMC filter-graphic terminal
Main | |
range of product | Altivar 71 |
product or component type | Variable speed drive |
product specific application | Complex, high-power machines |
component name | ATV71 |
power supply voltage | 500…690 V (- 15…10 %) |
network number of phases | 3 phases |
Variable speed drive ATV71
11kW-15HP – 240V – w/o EMC filter-graphic terminal
Main | |
range of product | Altivar 71 |
product or component type | Variable speed drive |
product specific application | Complex, high-power machines |
component name | ATV71 |
motor power kW | 11 kW at 200…240 V 3 phases |
motor power hp | 15 hp at 200…240 V 3 phases |
network number of phases | 3 phases |
EMC filter | Without EMC filter |
assembly style | With heat sink |
