Schneider XPS Safety Relay

range of product

Preventa Safety automation

product or component type

Preventa safety module

safety module name

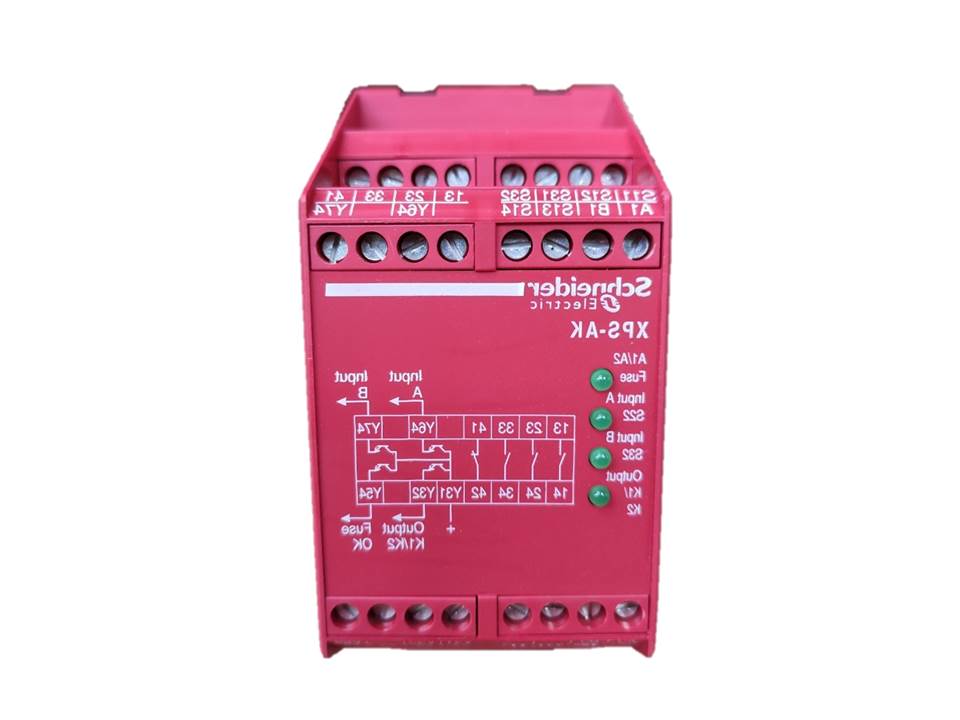

XPSAK

safety module application

For emergency stop, switch, sensing mat/edges or safety light curtain monitoring

function of module

Proximity sensor monitoring
Emergency stop monitoring 1-channel wiring
Monitoring of electro-sensitive protection equipment (ESPE)
Multiple emergency stop monitoring 2-channel wiring
Monitoring of a movable guard
Sensing mat and edges monitoring
Emergency stop with 2 NC contacts monitoring 2-channel wiring
Monitoring of a movable guard associated with 2 switches and automatic start

safety level

Can reach PL e/category 4 conforming to EN/ISO 13849-1
Can reach SILCL 3 conforming to EN/IEC 62061

safety reliability data

DC >99 % conforming to EN/ISO 13849-1
MTTFd = 154.5 years conforming to EN/ISO 13849-1
PFHd = 7.39E-9 1/h conforming to EN/IEC 62061

type of start

Configurable

connections – terminals

Captive screw clamp terminals, 1 x 0.14…1 x 2.5 mm²flexible with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.14…1 x 2.5 mm²solid with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.25…1 x 1.5 mm²flexible with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.25…1 x 2.5 mm²flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.14…2 x 0.75 mm²flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.14…2 x 0.75 mm²solid with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.25…2 x 1 mm²flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.5…2 x 1.5 mm²flexible with cable end, with double bezel

output type

Relay instantaneous opening, 3 NO circuit(s), volt-free

number of additional circuits

1 NC + 4 solid state outputs

[Us] rated supply voltage

24 V AC – 15…10 %
24 V DC – 15…10 %

synchronisation time between inputs

Unlimited (manual start)
2 or 4 s de本地位址 (網址) of wiring (automatic start)

supply frequency

50/60 Hz

maximum power consumption in VA

5 VA AC

input protection type

Internal, electronic

[Uc] control circuit voltage

24 V DC

maximum line resistance

28 Ohm

breaking capacity

180 VA holding AC-15 C300 relay output
1800 VA inrush AC-15 C300 relay output

breaking capacity

1.5 A at 24 V (DC-13) time constant:50 ms for relay output

output thermal current

6 A per relay for relay output

[Ith] conventional free air thermal current

18 A

associated fuse rating

4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200

minimum output current

10 mA for relay output

minimum output voltage

17 V for relay output

maximum response time on input open

40 ms

[Ui] rated insulation voltage

300 V (pollution degree 2) conforming to IEC 60947-5-1
300 V (pollution degree 2) conforming to DIN VDE 0110 part 1

[Uimp] rated impulse withstand voltage

4 kV overvoltage category III conforming to IEC 60947-5-1
4 kV overvoltage category III conforming to DIN VDE 0110 part 1

local signalling

4 LEDs

current consumption

30 mA at 24 V AC on power supply

mounting support

35 mm symmetrical DIN rail

net weight

0.3 kg

standards

EN/ISO 13850
EN 1088/ISO 14119
EN/IEC 60947-5-1
EN/IEC 60204-1

product certifications

CSA
UL
TÜV

IP degree of protection

IP20 (terminals) conforming to EN/IEC 60529
IP40 (enclosure) conforming to EN/IEC 60529

ambient air temperature for operation

-10…55 °C

ambient air temperature for storage

-25…85 °C
