| 品牌 | Sesame |
|---|---|
| 型號 | on line payment PE Series SESAME Precision Planetary Gearhead Reducer |
| 規格 | Machinery>>General Machinery Accessories>>Power Transmission Parts>>Speed Reducers |
Sesame price of spur gear Gearhead planetary speed reducer
Sesame geared stepper motor Gearhead gear planetary speed reducer
Sesame steel spur gear precision Gearhead planetary speed reducer
https://www.alibaba.com/product-detail/on-line-payment-PE-Series-SESAME_62007063939.html?spm=a2747.manage.0.0.205a1757x5vaRX
Precision gear design and professional gear processing create low backlash operation,high efficiency,smooth running low noise and long life of the planetary gear with IP65 protection on most models.
*Multiple design configurations and performance leavels
*Adapters for all seavo moters
*Drop-ins for most industry standards
*Hardened and ground gearing
*One-piece planet carrier/output shaft on most models
*Planets with full needle bearing support
*IP65 protection on most models

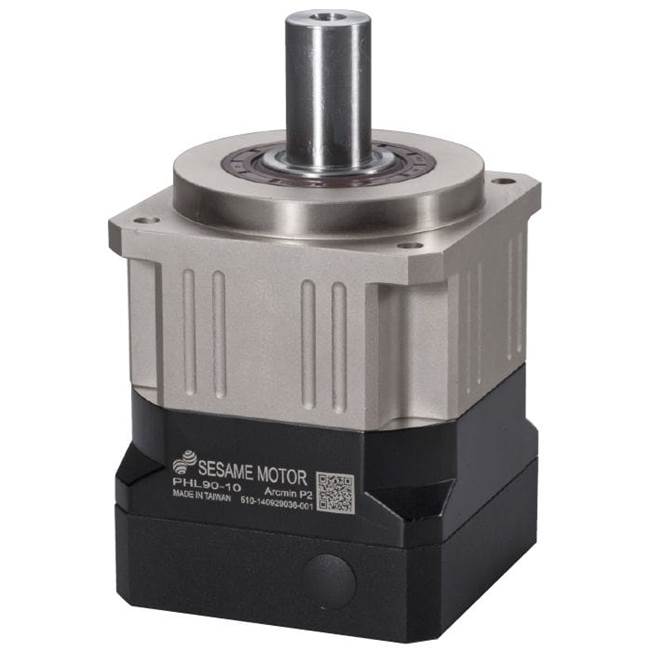

PH Series (Exactitude Helical Series Nickel-Plating) | PHL (Nickel-Plating) | PHR (Nickel-Plating) | PHF (Nickel-Plating) |
PG Series (Precision Helical &Spur Series Nickel-Plating/ Baking Varnish) | PGH (Helical, Nickel-Plating) | PGRH (Helical, Nickel-Plating) | PGF (Helical, Nickel-Plating) |
PGL (Nickel-Plating) | PGR (Nickel-Plating) | PGLH (Helical, Nickel-Plating) | |

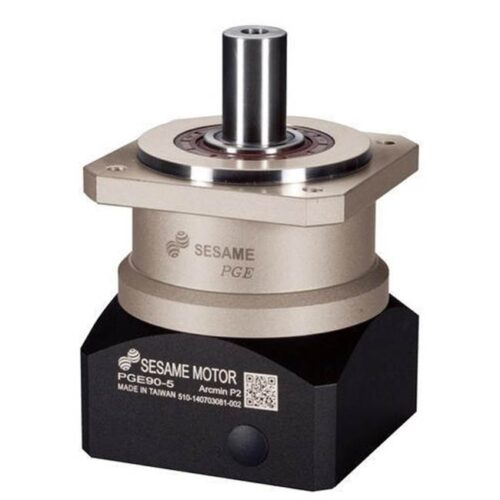

PGL (Baking-Vamish) | PGC (Baking-Vamish) | PGE (Baking-Vamish) | |
PE Series (Standard Spur Series Baking-Vamish) | PEL (Baking-Vamish) | PEC (Baking-Vamish) | PEE (Baking-Vamish) |
PC Series (Primary Spur Series Baking-Vamish) | PCL (Baking-Vamish) |
Sesame planetary speed reducer coding system
P | Planetary | |
G | (Grade) | H:Exactitude Helical Series |
G:Precision Series | ||
E:Eifficient Series | ||
C:Primary Series | ||
U:Heavy Duty Series | ||
B:Muti-Ratio Series | ||
T:Muti-Shafted Series | ||
P:Light Load Series | ||
L | (Connection) | L:Square Housing with Flange |
C:Round Housing without Flange | ||
E:Round Housing with Flange | ||

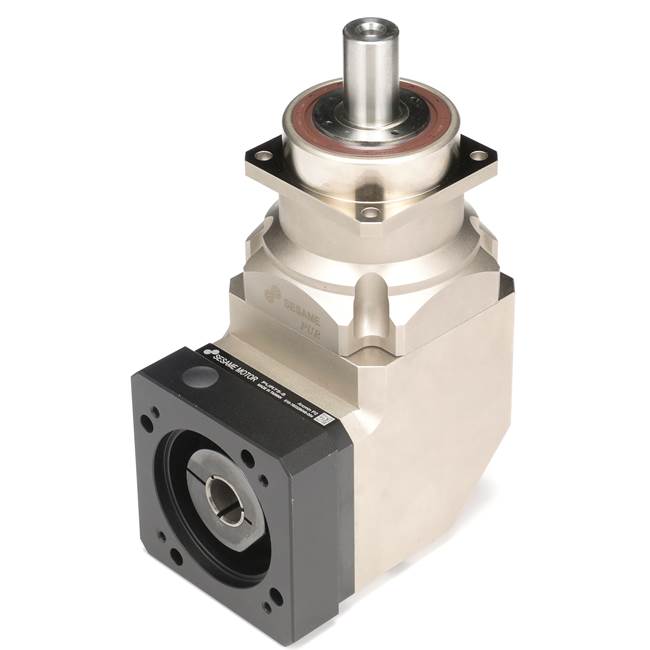

R:Right Angle | ||
F:Plate Type | ||
H:Square Flange Helical Gear ( Square Flange Helical Gear for G Grade(Precision Series) only) | ||
60 | (Size) | 42:__42 60:__60 90:__90 115:__115 142:___142 180:____180 220:____220 |
30 | (Speed Reduction Ratio) | Single Stage:3,4,5,6,7,8,9,10 Double Stage:12,15,20,25,30,35,40,45,50,60,70,80,90,100 Muti-Stage:125~1000 |
P1 | (Backlash) | P0:Micro Backlash P1:Precision Backlash P2:Standard Backlash |
Y | (Customer Specification) | |
Motor | (Motor Model) |
Please send inquiry to us for discussing the customized products.
Sesame Planetary Gear heads are produced under strictly exclusive pairing process to ensure accuracy and lifespan.
Motor Shaft Dia. | Flange Dia. | Motor Shaft Length | Flange Height | P.C.D of Bore | Bore Dia. | Motor Flange Square | Actual Length of Motor Shaft | Backlash |
ØA (h6) | ØB (h7) | C | D | ØE | ØF | __H | L | P1/P1/ P2 |
>>How to connection the motor and gearhead?
