| 品牌 | Tend |
|---|---|
| 型號 | Tend Electric Wireless Hoist Crane Remote Control Push Button Switch |
| 規格 | Electrical Equipment & Supplies>>Switches>>Push Button Switches |
Tend Hoist Wireless crane remote control crane Push Button Switch
Tend Wireless remote control electric hoist for crane Push Button Switch
Tend electric chain hoist remote control push button switch for crane
What are the advantages of Hoist Push Button Switch?
1. It cancontrol three phasesmotor directly. No need to use magnetic switch. Easy wiring.
2. It iswaterproofandmade out of ABS housing. Suitable for out-door application.
3. Unique mechanical interlock design, which can helpprevent short-circuit.
4.Can be use withemergency switch, pilot lamp, push button switch, or key switch.
(Rated current Ith=5A)
1. How many types ofHoist Push Button Switch?(THS82C)
| Type | SPEC | Extermal Diameter of Cable | Terminal | Remarks | |
| THS82C | Three Phase 200/220VAC 400/440VAC 2.2KW | 2 Holes | Ø11.3~Ø13.5 | M3.5 | Control Motor Directly |
| 4 Holes | Ø13.3~Ø16.5 | ||||
| 6 Holes | Ø16.3~Ø19.5 | ||||
| 8 Holes | Ø19.3~Ø22.5 | ||||

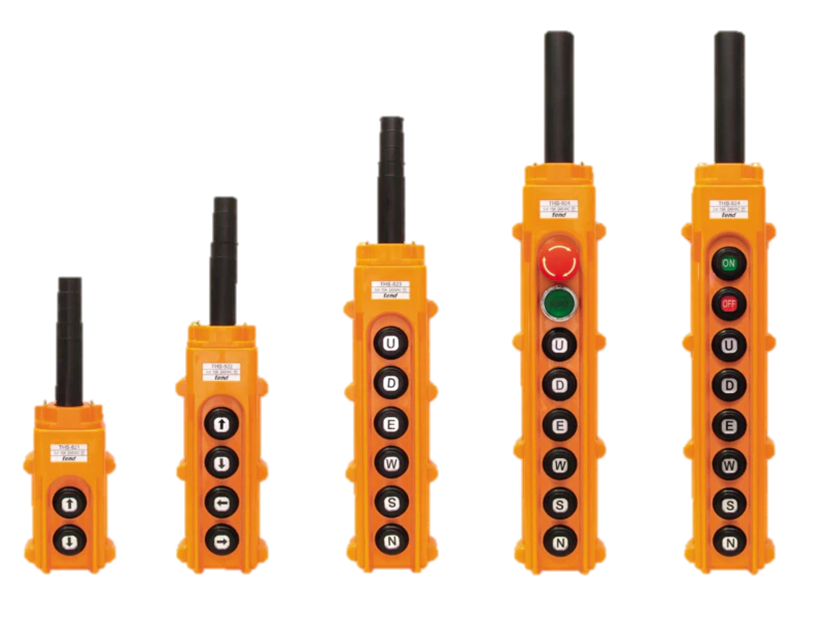

THS-82 (2 Holes) THS-822 (4 Holes)
THS-8222 (6 Holes) THS-8EI222 (8 Holes)
Type | SPEC | Extermal Diameter of Cable | Terminal | Remarks | |
THS83C | 2A 500VAC 5A 250VAC | 2 Holes | Ø11.4~Ø12.6 | M4 | Control magnetic switch |
4 Holes | Ø14.3~Ø15.5 | ||||
THS86C | 6 Holes | Ø17.2~Ø18.4 | |||
8 Holes | Ø15.7~Ø17.1 | ||||
How big is Hoist Push button Switch and its wiring?
THS-8366 (6 Holes) THS8EI366 (8 Holes)

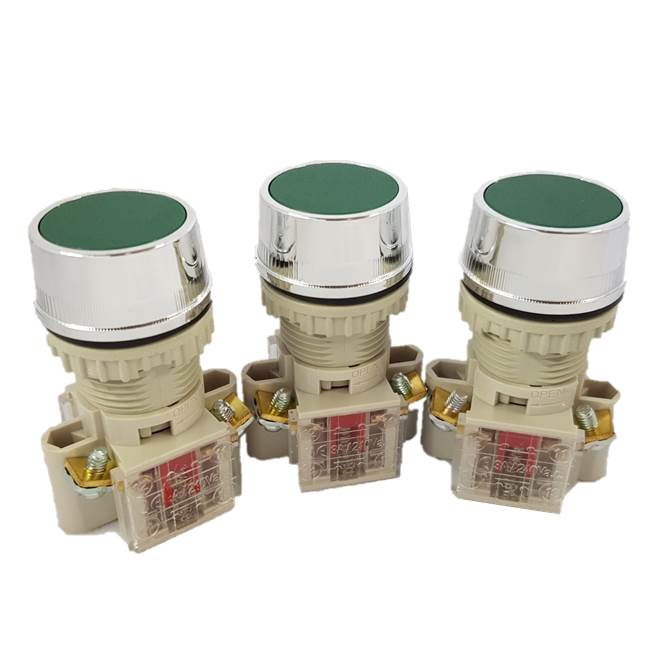

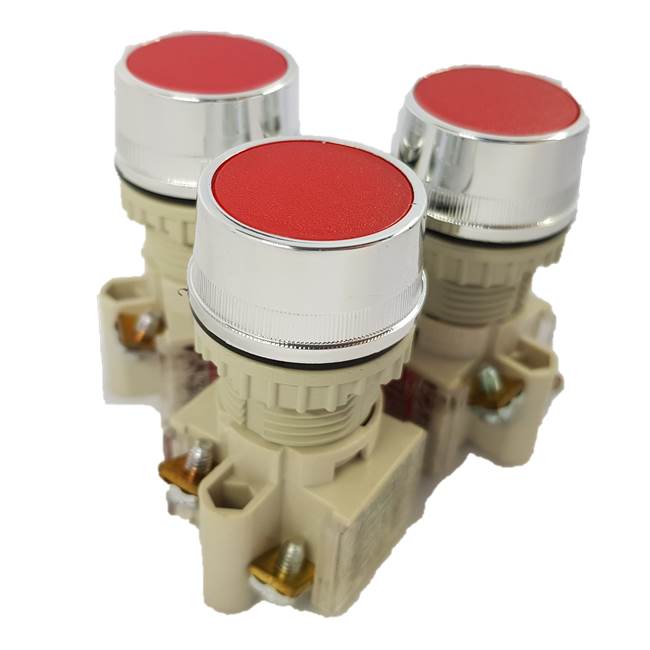

We offer selectable push button switch with also waterproof function.

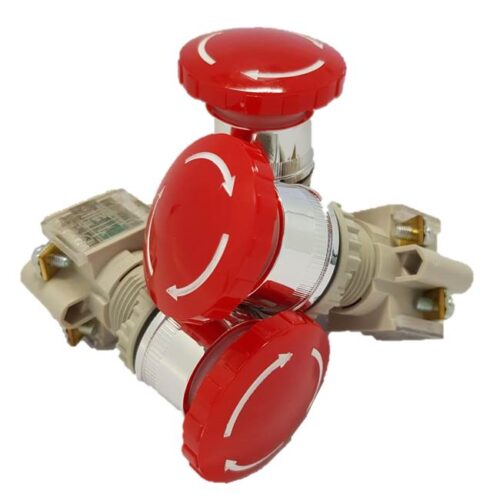

E (THS-BKR) -1b |
S (THS-SSR) -2a |
B (THS-BFR) -1a1b |
PB (THS-PB) -1a |
I (THS-IFR) -1a |
X (THS-X) -2*TP4*8 Screw Blanking Plate |
K (THS-KSR) -2a |
P (THS-PR) -Lamp Voltage:220VAC |
