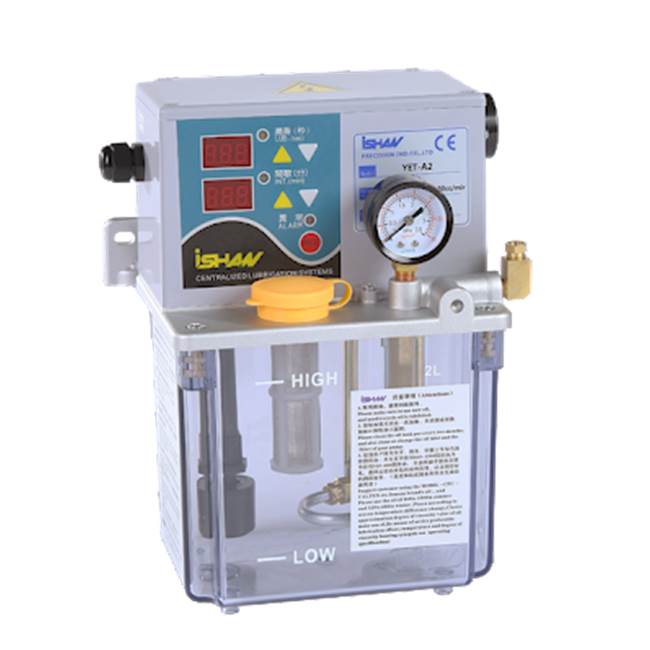

iSHAN Volumetric Electric YET-C2 Hydraulic Lubricant Oil Piston Pump
ishan yet-c2 thin oil resistance automatic lubricant piston pump
yet-c2 hydraulic piston lubricating Oil piston pump
yet-c2 2l 3l 4l 110v 220vac 100w oiler volumetric electric lubricator structure
Type
|
YET-C2
|
YET-C2P2
|
System
|
Piston
|
|
DIstributor
|
DT-series or DX-series
|
|
Single phase Voltage (VAC)
|
110 or 220
|
|
Power (W)
|
100
|
|
output connection capacity(A)
|
Liquid level switch 0.3
|
pressure switch 3.0
|
Lubrication time
|
The PLC control system must be connected to the YET-series
|
|
Interval time
|
The PLC control system must be connected to the YET-series
|
|
Spit out the caliber
|
Ø 6
|
|
Maximum spitting pressure (kgf/cm²)
|
15
|
|
The amount of spitting (cc/min)
|
150
|
|
Pressure switch (kgf/cm²)
|
No
|
11.5↑ off
|
Liquid level switch
|
Upper power (oil conduction)
|
|
Oil tank capacity (L)
|
2L (resin) | 3L (resin) | 4L (resin) | 4L (alufer)
|
|
Weight (kg)
|
2.5 | 2.7 | 3.0 | 3.5
|
